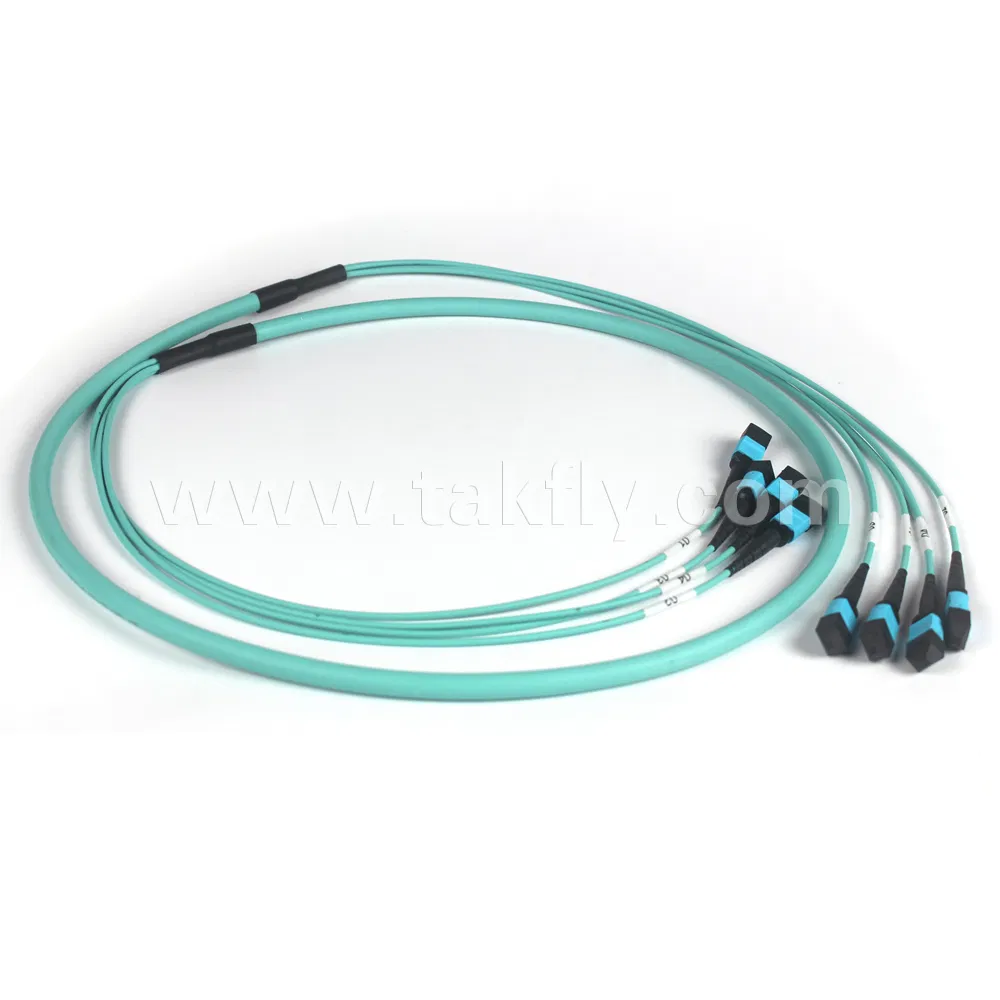

MTP-MPO Fiber Patch Cord 8-24 Core Single/Multimode OS1-OM4

Certification : RoHS, CE, ISO9001, VDE, CCC

MOQ : 1

Price : 9.15

Connection Structure : MTP-MTP

Material Shape : Round Wire

Allowed Lateral Pressure : 100(N/100mm)<1000(N/100mm)

Allowed Tensile Strength : 1000N<10000N

Core : Single Core

Sheath Material : PVC or LSZH

Fiber Cores : 8,12,20,24

Fiber Type : OS1, OS2, Om1, Om2, Om3, Om4

Cable Jacket Color : Yellow, Blue, Green, Aqua, Red, Magenta, Beige

Insertion Loss : ≤0.3 dB (typical)

Return Loss : ≥45 dB (SM), ≥30 dB (MM)

Operating Wavelength : 1310, 1510 nm

Operating Temperature : -40~75 ºC

Storage Temperature : -45~85 ºC

Cable Diameter : φ3.0, φ2.0, φ0.9 mm

Contact Now

FTTX Singlemode/Multimode MTP/MPO Optical Fiber Patch Cord




A patch cord is a fiber optic cable used to attach one device to another for signal routing.
MPO connector realizes high density interconnection by MT Ferrule with Fiber Ribbon.

Features:
Low insertion loss, high return loss
MT based Multi-fiber Connector up to 12 fibers
High credibility and stability
Good in repeatability and exchangeability

Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
arameter Unit FC, SC, LC/ Armoured fiber patch cord             ST, MU         MT-RJ, MPO         E2000
        SM         MM SM     MM SM     MM SM


        PC UPC APC PC PC UPC PC PC UPC PC PC APC












Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
















Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
















Operating wavelength nm 1310, 1510             1310, 1510         1310, 1510         1310, 1510
Exchangeability dB ≤0.2             ≤0.2         ≤0.2         ≤0.2
Vibration dB ≤0.2             ≤0.2         ≤0.2         ≤0.2
Operating temperature ºC  -40~75             -40~75         -40~75         -40~75
Storage temperature ºC  -45~85             -45~85         -45~85         -45~85
Cable diameter mm φ3.0, φ2.0, φ0.9             φ3.0, φ2.0, φ0.9         φ3.0, φ2.0, φ0.9         φ3.0, φ2.0, φ0.9
