Outdoor ADSS Optical Cable 50M 2-144F

Brand Name : DF/OEM/Nuetral

Model Number : ADSS Optical Cable

Certification : CE/ROHS/REACH/ISO9001/ISO14001

Place of Origin : China, Shenzhen

MOQ : negotiable

Price : negotiable denpend on QTY

Payment Terms : Western Union, T/T, /Paypal

Supply Ability : 1000PCS/Day

Delivery Time : 5-9 working days depends on QTY

Packaging Details : Blister box+Carton

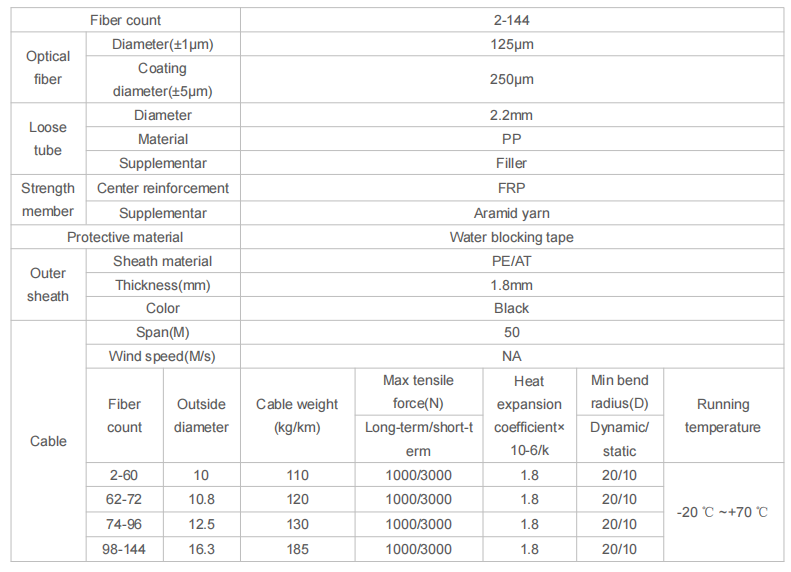

Product Name : ADSS Optical Cable

Fiber count : 2-144

Optical fiber Diameter(±1µm) : 125μm

Optical fiber Coating diameter(±5µm) : 250μm

Loose tube Diameter : 2.2mm

Supplementar : Aramid yarn

Protective material : Water blocking tape

Sheath Sheath material : PE/AT

Color : Black

Span(M) : 50M

Operation Temperature : -20℃~70℃

Fiber Brand : Corning, YOFC, OFS, Draka

Contact Now

Outdoor ADSS Optical Cable 50M 2-144F
Outdoor ADSS Optical Cable 50M 2-144F ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
ADSS Optical Cable Applications
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. For power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
ADSS Optical Cable Features
  • Can be installed without shutting off the power
  • Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
  • Large span lengths and the largest span is over 1000m
  • Good performance of tensile strength and temperature
  • Meet various requirements of market and clients

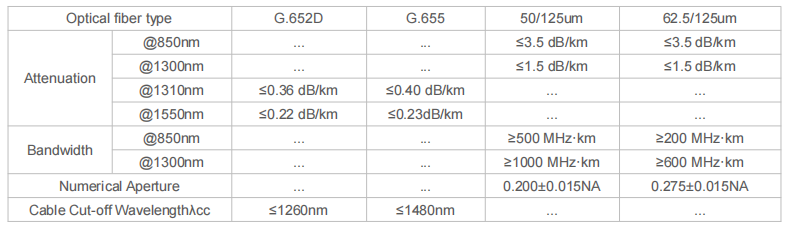

ADSS Optical Cable Parameter and Properties
Optical fiber type G.652D G.655 50/125um 62.5/125um

Attenuation

@850nm

...

...

≤3.5 dB/km

≤3.5 dB/km

@1300nm

...

...

≤1.5 dB/km

≤1.5 dB/km

@1310nm

 ≤0.36 dB/km ≤0.40 dB/km

...

...

@1550nm

≤0.22 dB/km

≤0.23dB/km

...

...

Bandwidth

@850nm

...

...

≥500 MHz·km

 ≥200 MHz·km

@1300nm

...

...

≥1000 MHz·km

≥600 MHz·km

Numerical Aperture

...

...

0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelengthλcc

≤1260nm

≤1480nm

...

...

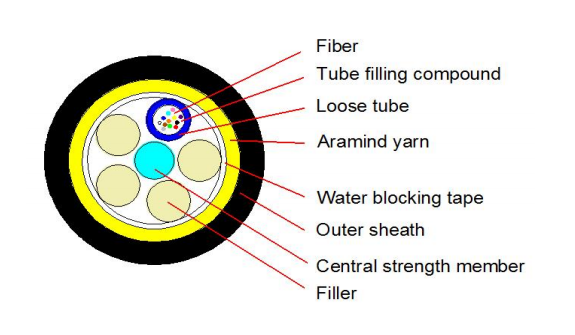

ADSS Optical Cable Structure
Outdoor ADSS Optical Cable 50M 2-144F
Other Requirements
Length of production optical cable: 2000M
Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE ADSS 144C 16.3 SM G652D MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experienced
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery:
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time! Outdoor ADSS Optical Cable 50M 2-144F
