FTTH MPO/MTP Module Fan-out Fiber Optic Patch Cord | MPO Cable Assemblies | For Fiber Network Solution

Product Categories
TAKFLY COMMUNICATIONS CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

FTTH MPO/MTP Module Fan-out Fiber Optic Patch Cord | MPO Cable Assemblies | For Fiber Network Solution

Insertion loss : ≤ 0.3 dB

Operating Temperature : -20℃~70℃

Brand Name : DF/OEM/Nuetral

Model Number : FTTH MPO/MTP Module Fan-out Fiber Optic Patch Cord

Certification : CE/ROHS/REACH/ISO9001/ISO14001

Place of Origin : China, Shenzhen

MOQ : negotiable

Price : negotiable denpend on QTY

Supply Ability : 1000PCS/Day

Delivery Time : 5-9 working days depends on QTY

Packaging Details : Blister box+Carton

End face type : UPC and APC; PC and APC

Repeatability : ≤ 0.1

Bending radius（Static/Dynamic） : 10D/20D

Return loss : UPC SM≥50dB 、APC SM≥ 60 dB、 PC MM ≥ 35 dB

Length : Customized

wavelength : SM:1310/1550 MM:850/1300

Outer Sheath Material : PVC、LSZH

Product Name : FTTH MPO/MTP Module Fan-out Fiber Optic Patch Cord | MPO Cable Assemblies | For Fiber Network Solution

Fiber Brand : Corning, YOFC, OFS, Draka

Payment Terms : Western Union,T/T,/Paypal

Fiber type : SM（G652、G655、G657）；MM（OM1-OM5）

Cable Diameter : 2.0、3.0 or customized (Simplex/duplex)

Storage Temperature : -40℃~80℃

Contact Now

FTTH MPO/MTP Module Fan-out Fiber Optic Patch Cord | MPO Cable Assemblies | For Fiber Network Solution
FTTH MPO/MTP Module Fan-out Patch Cord Overview

MPO/MTP module fan-out optical fiber jumper is an innovative optical fiber connection product, suitable for data center networks, 10G/40G/100G networks, parallel interconnections, micro modules, active optical cables and other occasions.

FTTH MPO/MTP Module Fan-out Fiber Optic Patch Cord | MPO Cable Assemblies | For Fiber Network Solution

FTTH MPO/MTP Module Fan-out Patch Cord Applications
  • Datacenter rack mount patch panel
  • Connection between trunk cables to patch cords
FTTH MPO/MTP Module Fan-out Patch Cord Features
  • Module optical fiber connections to the torsion of the sequence
  • Can provide data center and SAN System, simple and flexible
  • MPO trunk connector fixed on the back of module
  • The standard 19" can be installed on any cabinet
  • Convenient to be installed, moved and added
Pre-terminated system installation
In order to ensure entire connection is in a unify condition, we need to first install patch panel, cassette module and Related mounting hardware.

Then, say the cables in designed cable passage position, remove all the protection caps and wraps, Connect MPO and to all the related MPO sockets, mount and secure the cables with cable ties, simple as that.
Installation steps:

1. Install accessories and hardware
2. Cable laying
3. Plug device
4. Cable mounting

FTTH MPO/MTP Module Fan-out Patch Cord Specifications

Type

MPO

LC

IL

Multi Mode

Single Max : 0.35db(L)

Single Max : 0.60db (G)

MAX : 0.10dB(L)

MAX : 0.15db (G)

Single Mode

Single Max : 0.35db(L)

Single Max : 0.75db (G)

MAX : 0.30db

RL

>20DB

>30db

>60DB (8 degree Angle Polish )

>50 db(UPC) >60DB(APC)

Enviromental

<0.2DB, 200 times insertion

<0.2db, 500times insertion

Enviromental

Working Temp

-20~ +60℃

Storage Temp

-40~ + 70 ℃

Install Temp

-5~ + 50 ℃

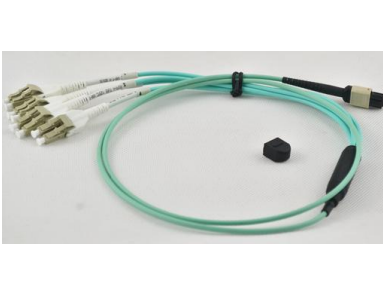

FTTH MPO/MTP Module Fan-out Patch Cord Picture

FTTH MPO/MTP Module Fan-out Fiber Optic Patch Cord | MPO Cable Assemblies | For Fiber Network Solution
Why choose TAKFLY?
Professional manufacturer:
  • With more than 26+ years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experienced
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
