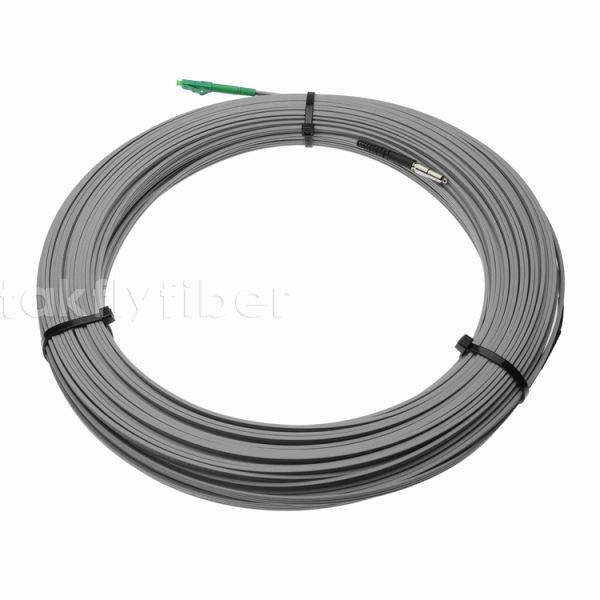

Pullable PRE-Connectorized Bullet SCAPC FTTH Drop Cable Fiber Optic Patchcord 2.0x5.2mm

Product Categories
TAKFLY COMMUNICATIONS CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Pullable PRE-Connectorized Bullet SCAPC FTTH Drop Cable Fiber Optic Patchcord 2.0x5.2mm

Production Capcity : 10000PCS/Day

Fiber Type : OS2, G652D , G657A1 , G657A2 , G657B3

Color : Black

Length : 5M or Customized

Certificate : CE/ROHS/REACH

Payment Terms : Western Union,T/T,/Paypal

Intertion Loss : ≤0.3dB

Jacket Material : LSZH

Place of Origin : China

Operation Temperature : -20℃~70℃

Connector Type : APC

Packaging Details : Export Standard Packing

Grade : Telecom Grade

Supply Ability : 10000PCS/Day

Delivery Time : 5-9 working days depends on QTY

Diameter : 2.0*5.2mm

MOQ : 100PCS

Brand Name : DF/OEM/Nuetral

Fiber Diameter : 9/125

Wavelength : 1310nm,1550nm

Product Name : Pullable PRE-Connectorized Bullet SCAPC Figture 8 FTTH Fiber Optic Cable patch cord, 2.0x5.2mm

Price : US$0.01~4.69/PC

Model Number : TK-PC-SAP-SA-AS-3.0-TPU

Return Loss : APC SM ≥ 60dB

Certification : CE/ROHS/REACH/ISO9001/ISO14001

Contact Now

Pullable PRE-Connectorized Bullet SC/APC Figure 8 FTTH Fiber Optic Cable Patch Cord, 2.0x5.2mm
Takfly Bullet SC/APC connector can be threaded through pipes with inner diameter greater than 6mm. This final cable solution for FTTH projects connects between FAP boxes, FTB, FDB, face plates and ONU/ONT equipment. With easy fiber accessibility and simple installation, this FTTH drop patch cable can be directly connected to housing rooms.
Product Overview
This pre-connectorized fiber optic patch cord features a compact bullet SC/APC connector design for easy installation in tight spaces, making it ideal for last-mile FTTH deployments.
Fiber Optic Specifications
Parameter Specification
Mode Field Diameter 8.6μm ± 0.4μm at 1310nm
Cladding Diameter 125.0μm ± 0.7μm
Coating Diameter 245μm ± 10μm
Coating-Cladding Concentricity ≤ 12.5μm
Cut-off Wavelength ≤ 1260nm
Attenuation Coefficient 1310nm ≤ 0.4dB, 1550nm ≤ 0.3dB
Cable Construction
Fiber Configuration: 1 core G657A1 fiber
Strength Member: FRP, 0.5mm × 2
Messenger Wire: Steel wire, 1.0mm diameter
Outer Sheath: LSZH Black
Cable Dimensions: 5.0 × 2.0mm
Connector Performance
Parameter Specification
Connector Type SC/APC (1310nm)
Insertion Loss ≤ 0.3dB + 0.36dB/km @ 1310nm
≤ 0.3dB + 0.25dB/km @ 1550nm
Return Loss ≥ 60dB
Endface Standard IEC 61300-3-35
Durability (1000 mating cycles) 0.2dB Max increase
Installation Temperature -10℃ to +60℃
Operating Temperature -25℃ to +70℃
Storage Temperature -40℃ to +75℃
Cable Pull Strength 90N
Mechanical & Optical Performance
Parameter Long Term Short Term
Tensile Strength 200N 500N
Crush Load 1000N 2000N
Wavelength 1310/1550nm
Attenuation 0.4/0.3dB
Detailed Technical Parameters
Item Parameter Unit Specification (SM G657A2)
Mode Field Diameter 1310nm μm 8.2~9.0
1550nm μm 9.1~10.1
Cladding Diameter μm 125 ± 0.7
Cladding Non-Circularity % ≤ 0.7
Core-Cladding Concentricity Error μm ≤ 0.5
Coating Diameter μm 245 ± 5
Coating Non-Circularity % ≤ 6.0
Cladding-Coating Concentricity Error μm ≤ 12
Cable Cutoff Wavelength nm λcc ≤ 1260
Attenuation (Max) 1310nm dB/KM ≤ 0.36
1550nm dB/KM ≤ 0.25
Macro-Bending Loss 1 Turn × 7.5mm radius @1550nm dB ≤ 0.08
1 Turn × 7.5mm radius @1265nm dB ≤ 0.25
Applications
  • CATV Systems
  • Telecommunication Networks
  • Active Device Termination
  • Local Area Networks (LANs)
  • Data Processing Networks
  • Test Equipment
  • Wide Area Networks (WANs)
Key Features
  • Low insertion loss and high reflection loss
  • Excellent exchange ability
  • Superior durability
  • High temperature stability
  • Compliant with Telcordia GR-326-CORE standard
Pullable PRE-Connectorized Bullet SCAPC FTTH Drop Cable Fiber Optic Patchcord 2.0x5.2mm
With more than 10 years of sales and shipping experience in optical fiber products, we have helped over 127 customers expand their business and increase sales. We provide professional guidance to help you save time and money while increasing your sales.
Pullable PRE-Connectorized Bullet SCAPC FTTH Drop Cable Fiber Optic Patchcord 2.0x5.2mm

Product Tags:

Pullable PRE-Connectorized Fiber Optic Patchcord



Bullet SCAPC FTTH Drop Cable



2.0x5.2mm SC/APC Patch Cord
