SC/UPC-SC/UPC Transparent Invisible FTTH Drop Cable Patchcord

  • 1
  • 2
  • 3

Fiber Diameter : 9/125

Grade : Telecom Grade

Model Number : TK-TI-PC--SA-AS-2.0x3.0-PVC-XXX

Color : Transparent

Supply Ability : 5000PCS/Day

Delivery Time : 5-9 working days depends on QTY

Certification : CE/ROHS/REACH/ISO9001/ISO14001

Place of Origin : China

Connector Type : APC

Operation Temperature : -20℃~70℃

Length : 3M or Customized

Intertion Loss : ≤0.3dB

Diameter : 2.0*3.0mm

Jacket Material : PVC

Fiber Type : OS2, G652D , G657A1 , G657A2 , G657B3

Product Name : SC/UPC-SC/UPC Transparent Invisible FTTH Drop Cable Patchcord

Certificate : CE/ROHS/REACH

Production Capcity : 10000PCS/Day

Wavelength : 1310nm,1550nm

Payment Terms : Western Union,T/T,/Paypal

Return Loss : UPC SM ≥ 50dB

Packaging Details : Export Standard Packing

Brand Name : DF/OEM/Nuetral

Price : US$0.01~4.69/PC

MOQ : 100PCS

Contact Now

SC/UPC-SC/UPC Transparent Invisible FTTH Drop Cable Patchcord

SC/UPC-SC/UPC Transparent Invisible FTTH Drop Cable Patchcord

Takfly FTTH 2.0*3.0mm Transparent Invisible Indoor Fiber Optic Patchcord features a 2.0*3.0mm LSZH cable with SC/UPC-SC/UPC connectors, designed for high-performance, low-loss (insertion loss <0.3dB, return loss >55dB) single-mode fiber connections. Ideal for indoor/outdoor FTTH applications, these pre-terminated, rugged assemblies offer 1 fiber count with 100% factory inspection.

SC/UPC-SC/UPC Transparent Invisible FTTH Drop Cable Patchcord
Product Specifications
Fiber Optic Attributes
  • Mode field diameter: 8.6um ±0.4um at 1310nm
  • Cladding diameter: 125.0um ±0.7um
  • Coating diameter: 245um ±10um
  • Coating-cladding concentricity error: ≤12.5um
  • Cut-off wavelength: ≤1260nm
  • Attenuation coefficient: 1310 ≤0.4dB, 1550 ≤0.3dB

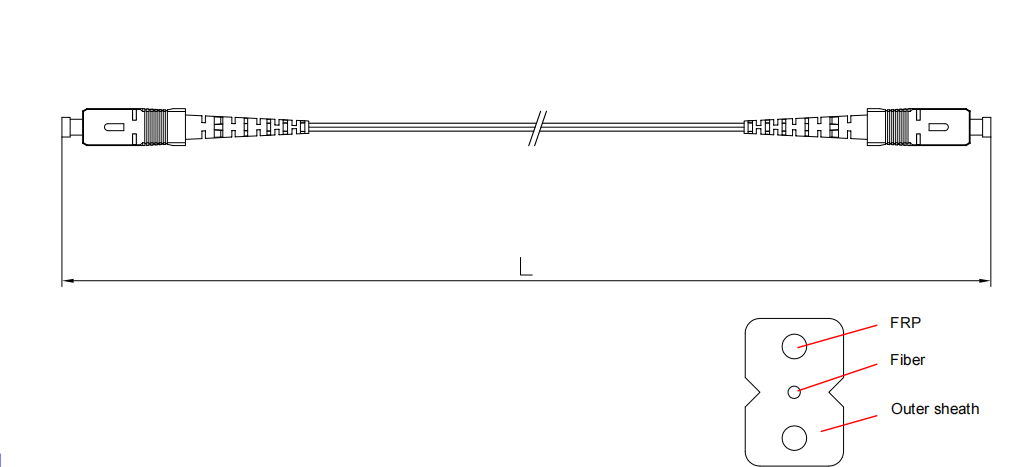

FTTH Cable Information
  • Number of fiber: 1 core
  • Fiber type: G657A1/SM G657A2/G657B3
  • Strength member material: FRP
  • Diameter: 0.5mm*2
  • Outer sheath material: LSZH Black
  • Cable size: 2.0*3.0mm
Connector Test Specifications
Item Specifications
Type SC/APC(1310)
Insertion Loss ≤0.3 dB + 0.36 dB/km*L(km) @ 1310nm
≤0.3 dB + 0.25 dB/km *L(km) @ 1550nm
Return Loss ≥60dB
Endface IEC 61300-3-35
Durability (1000 Mating) 0.2dB Max. increase
Installation Temperature -10℃～+60℃
Operating Temperature -25℃~70℃
Storage Temperature -40℃~75℃
Cable pull 70N
Optical Fiber Performance
Parameter Long Term Short Term
Tensile strength 40N 80N
Crush load 500N 1000N
Wavelength (nm) 1310/1550
Attenuation (dB) 0.4/0.3
Cladding diameter (um) 125±1
Cladding non-circularity ≤1.0%
Coating diameter (um) 242±7
Detailed Parameters
NO. Item Unit Specification (SM G657A2)
1 Mode Field Diameter 1310nm: μm
1550nm: μm		 8.2~9.0
9.1~10.1
2 Cladding Diameter μm 125±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12
8 Cutoff Wavelength nm λcc ≤1260
9 Attenuation (Max) 1310nm: dB/KM
1550nm: dB/KM		 ≤0.36
≤0.25
10 Macro-Bending Loss 1 Turn x 7.5mm radius@1550nm: dB
1 Turn x 7.5mm radius@1265nm: dB		 ≤0.08
≤0.25
Applications
  • FTTR (Fiber to the Room): Enables seamless fiber connectivity in residential or commercial indoor environments
  • Indoor Optical Networks: Ideal for high-speed data transmission with minimal visibility impact
  • Telecom Systems: Reliable connectivity for LAN, WAN, and metro networks
  • Smart Homes: Supports modern home networks requiring aesthetically pleasing and high-performance cabling
  • Enterprise Networking: Suitable for discreet indoor installations in offices and business centers
Key Features
  • Invisible Fiber Design: 2.0*3.0mm cable with transparent finish blends into surroundings for discreet indoor use
  • High-Performance SC/SC Connectors: Ensures low insertion loss and high return loss for stable signal transmission
  • Compact and Flexible: Easy to route around corners, walls, and ceilings without affecting performance
  • Low Bend Sensitivity: Built with G.657A2/B3 fiber for excellent bend performance and durability
SC/UPC-SC/UPC Transparent Invisible FTTH Drop Cable Patchcord

With more than 10 years of sales experience and shipping experience in optical fiber products, we have helped more than 127 customers to expand their business and increase sales. We believe we can provide you with professional guidance, help you save time and money, and increase your sales.

SC/UPC-SC/UPC Transparent Invisible FTTH Drop Cable Patchcord
