MOQ : 1 Pices
Price : US$0.01 ~ US$1200/PC
Cores : 2/4/6/8/12/24/48
Cable Material : LSZH / OFNP / PVC
Operating Temperature : -40°C to +80°C
Payment Terms : L/C,D/A,D/P,T/T,Western Union,
Module Fiber Amount : Up to 24
Packaging Details : spone + box + carton
Place of Origin : Guangdong, SHENZHEN
Brand Name : TAKFLY
Size : 180 x 90 x 30 (mm)
Patch Penal : 6 x 4 LC x 5 moudle
Fiber Mode : SM, MM(OM1,OM2,OM3,OM4,OM5)
Certification : CE,ROHS,REACH,ISO9001,ISO14001
Ir Stardand : MPO/MTP<0.7dB
Model Number : DF-MPO Patch Panel#995
Return Loss : >50dB
Delivery Time : 3-7working days
Cable Diameters : 0.9 / 2.0 / 3.0mm
Fiber Count : 8/12/24/48/72 fibers
Core : Multicore
Installation Type : Plug-in/Field-terminated
Fiber Counts : 12F
Polarity : B
The Takfly series rackmount patch panel is designed to house easy‑plug MTP/MPO to LC fiber cassette modules, forming a plug‑and‑play, pre‑terminated high‑density MTP/MPO cabling system. This solution enhances network availability and is especially suitable for SAN, LAN, and data center environments. Each cassette accommodates a 12‑ or 24‑fiber MTP/MPO‑based assembly and comes pre‑loaded with LC adapters in various fiber modes.
| Parameter | 1U | 2U |
|---|---|---|
| Height | 44 mm | 88 mm |
| Maximum port count | 4 (up to 96 cores) | 8 (up to 192 cores) |
| Width | 482.6 mm (19″) | 482.6 mm (19″) |
| Depth | 363.2 mm | 363.2 mm |
| Net weight | 3 kg | 6 kg |
| Packaged weight | 3.3 kg | 6.5 kg |
| Material | 1.2~1.5 mm cold‑rolled steel | same |
| Coating | Powder coating | same |
| Color | Black | Black |
|
|

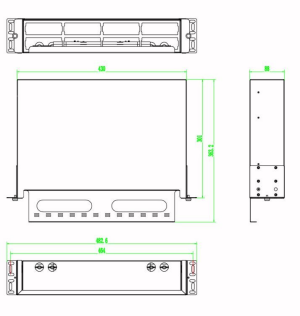

Takfly High-Density Rackmount Patch Panel with Plug-and-Play 12-Fiber MTP/MPO Cassette Management for Data Centers Images |
