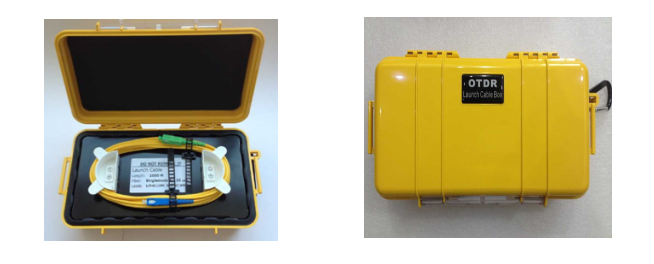

OTDR Launch Cable Box
Designed to aid in testing fiber optic cable when using an Optical Time Domain Reflectometer (OTDR), this launch cable box delivers powerful performance, easier operation, and efficient workflow.
Product Overview
The OTDR Launch Fiber Box is used with Optical Time Domain Reflectometers (OTDRs) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in different configurations and fiber lengths to suit various testing requirements.
Compliance Standards
- ITU-T G652.D, G656.A
- ITU-T G651.1 OM1, OM2, OM3, OM4
- IEC60793-2-10 type A1a.1/A1b OM1/OM2
- Type A1a.2 OM3, type A1a.3 OM4
- Telcordia (formerly Bellcore) GR-326-CORE
- RoHS Compliant Directive 2011/65/EU
Applications
- Use as OTDR launch/receive cable
- Test link loss with an OTDR
- Measure insertion loss and reflectance of near/far end connector
- Pulse suppressor for the first reflection at the beginning of a fiber
Key Features
- Standard boxes along with custom configurations for OTDR applications
- Compact and rugged packaging
- Portable for field use
- Prevents fiber damage and ensures accurate results
- Compound latch for positive seal and easy opening with locking feature
- Water and dust proof for use in various environments
- Case can house up to 2,000 meters of fiber
- Auto Purge Valve for changes in altitude and temperature
Technical Specifications
| Mechanical & Environmental Characteristics |
| Dimension |
24.8CM x 14.1CM x 6.7CM |
| Material |
SR Polypropylene |
| Color |
Yellow |
| Weight |
0.75kg |
| Packaging |
Rugged, hard-shell transit case |
| Storage Temperature |
-40 to +85°C |
| Fiber & Connector Characteristics |
| Fiber Types |
G652D, G657A, OM1, OM2, OM3, OM4 |
| Fiber Length (m) |
100 up to 2000 (max) |
| Lead Length |
2/3 Meters, 3mm buffer |
| Typical Loss |
<0.5dB @ 1310 for 1000 meters |
| Connector Type |
SC/LC/FC/ST |
| Polish |
PC, UPC, APC |
| Return Loss* |
UPC>=50dB, APC>=60dB, PC>=35dB |
| Repeatability (dB) |
<=0.2 (1000 times) |
| Exchangeability (dB) |
<=0.2 |
Order Information
OTDR-A-B-C-D
A for Input connector | B for Output connector | C for Fiber Mode | D for Length
For Example: OTDR-SC-FCA-SM-1KM; 1KM SM, SC on I/P lead, FC/APC on O/P lead
